PRORIDER GTS 27.5
£659.00
Wheel: 27.5''
Speed: 16
Geometry / Sizes
| Frame size | 360 | 400 | 440 | 480 | 520 | |
| A | Top tube | 580 | 580 | 580 | 600 | 620 |
| B | Seat tube | 360 | 400 | 440 | 480 | 520 |
| C | Rear center | 450 | 450 | 450 | 450 | 450 |
| D | Wheel base | 1101.1 | 1101.1 | 1101.1 | 1121.8 | 1142.5 |
| E | BB drop | 50 | 50 | 50 | 50 | 50 |
| F | Seat angle | 73° | 73° | 73° | 73° | 73° |
| G | Head angle | 69° | 69° | 69° | 69° | 69° |
| H | Offset | 42 | 42 | 42 | 42 | 42 |
| I | Head tube | 110 | 110 | 110 | 120 | 130 |
SIZE CHART

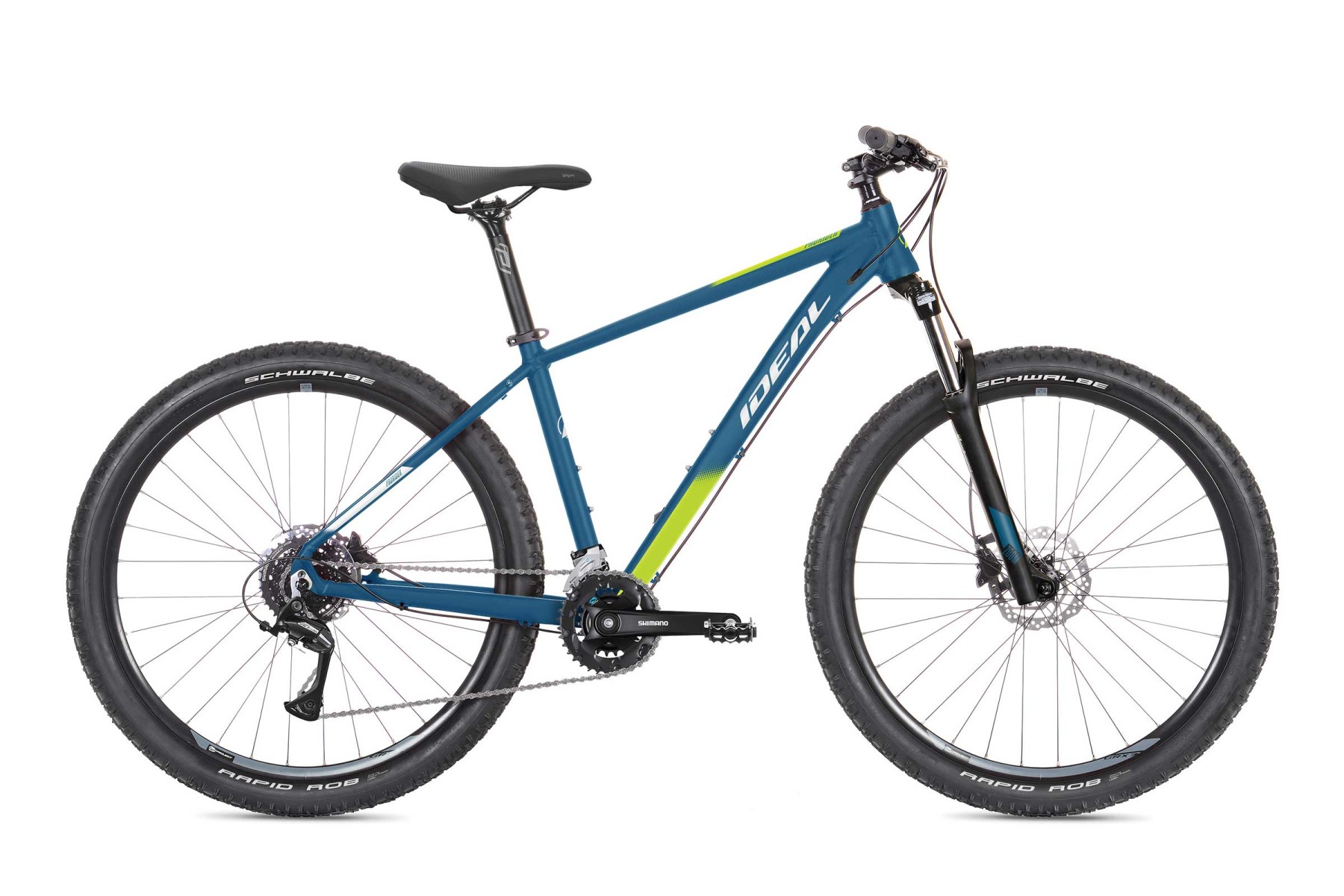

IDEAL Prorider GTS 27.5 Mountain Bike
Data sheet
- Frame
- Hardtail, AL6061-T4/T6, hydroforming,tapered head tube, internal cable routing
- Size
- 36/40/44/48 cm
- Fork
- ZOOM 565D, 100 mm, 25.4 mm, Lock Out
- Front Derailleur
- Shimano Altus FD-M315-TS
- Rear Derailleur
- Shimano Acera RD-M3020
- Shifter
- Shimano ST-EF505
- Bottom Bracket
- Shimano BB-UN101
- Crankset
- Shimano, FC-M315-2, 36-22Z
- Cassette Sprocket
- Shimano CS-HG400-8, 11-40Z
- Chain
- KMC Z8.3
- Front Hub
- Shimano HB-QC300
- Rear Hub
- Shimano FH-QC300
- Tires
- Schwalbe Rapid Rob, K-Guard, 57-584
- Brakes
- Shimano BR-MT200 / ST-EF505, Disc 160/160 mm
- Handlebar
- ID-Project Riser Bar HB-RB11L, 720 mm
- Grips
- Herrmans Grind
- Stem
- ID-Project ASDC1, 31.8 mm, 60/75 mm
- Seat Post
- ID-Project SPDC2, 30.9 mm
- Saddle
- Selle Royal Vivo Sport
- Rims
- Mach1 KARMA, 21-584
Wheel: 27.5''
Speed: 16
