PRORIDER Acera UNI 27.5

£659.00

Wheel: 27.5''

Speed: 16

Geometry / Sizes

  Frame size 360 400 440 480 520
A Top tube 580 580 580 600 620
B Seat tube 360 400 440 480 520
C Rear center 450 450 450 450 450
D Wheel base 1101.1 1101.1 1101.1 1121.8 1142.5
E BB drop 50 50 50 50 50
F Seat angle 73° 73° 73° 73° 73°
G Head angle 69° 69° 69° 69° 69°
H Offset 42 42 42 42 42
I Head tube 110 110 110 120 130

SIZE CHART

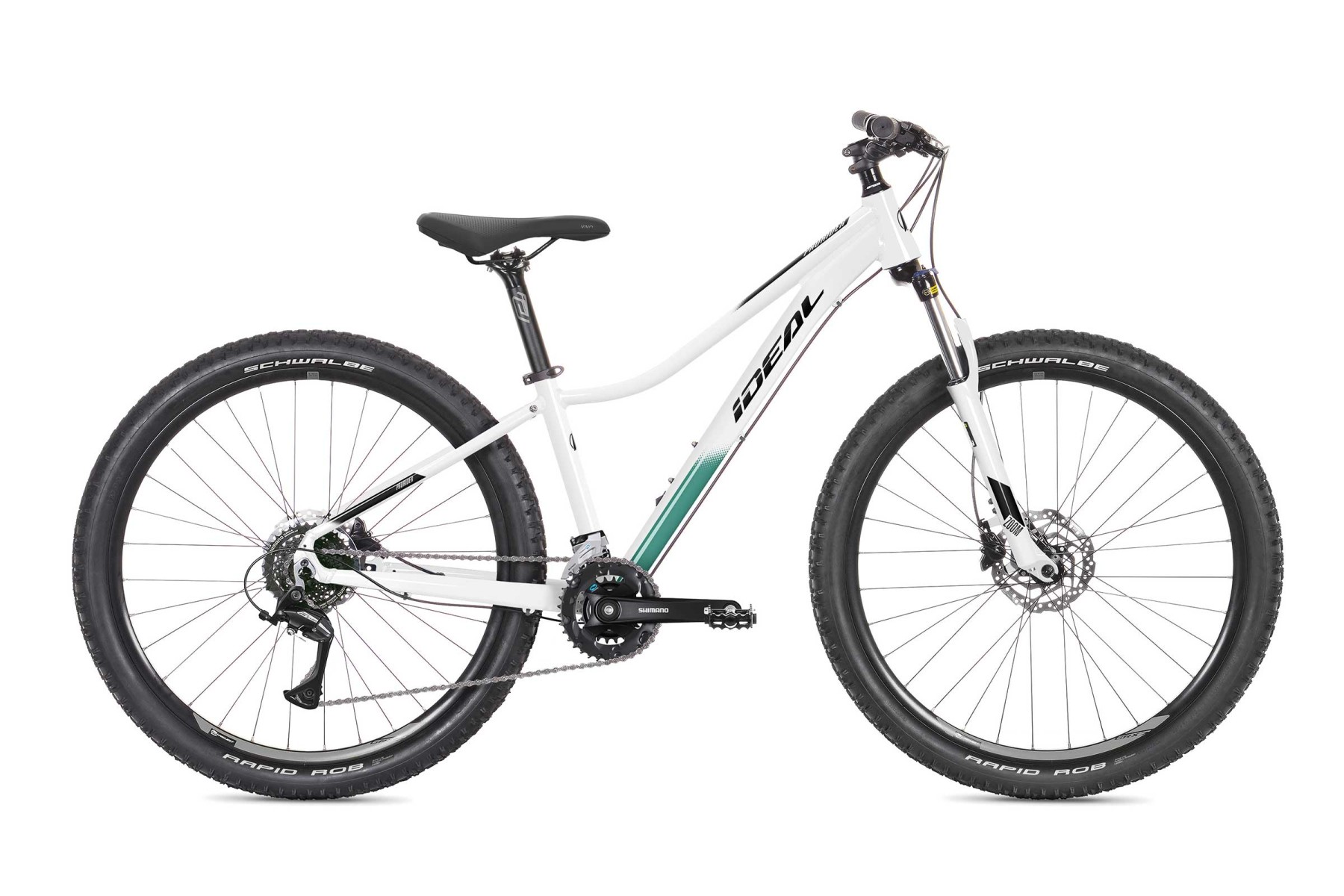

IDEAL Prorider Acera UNI 27.5 Mountain Bike

Data sheet

Frame
Hardtail, AL6061-T4/T6, hydroforming,tapered head tube
Size
36/40/44/48 cm
Fork
ZOOM 565D, 100 mm, 25.4 mm, Lock Out
Front Derailleur
Shimano Altus FD-M315-TS
Rear Derailleur
Shimano Acera RD-M3020
Shifter
Shimano ST-EF505
Bottom Bracket
Shimano BB-UN101
Crankset
Shimano, FC-M315-2, 36-22Z
Cassette Sprocket
Shimano CS-HG400-8, 11-40Z
Chain
KMC Z8.3
Front Hub
Shimano HB-QC300
Rear Hub
Shimano FH-QC300
Tires
Schwalbe Rapid Rob, K-Guard, 57-584
Brakes
Shimano BR-MT200 / ST-EF505, Disc 160/160 mm
Handlebar
ID-Project Riser Bar HB-RB11L, 720 mm
Grips
Herrmans Grind
Stem
ID-Project ASDC1, 31.8 mm, 60/75 mm
Seat Post
ID-Project SPDC2, 30.9 mm
Saddle
Selle Royal Vivo Sport
Rims
Mach1 KARMA, 21-584
