STROBE 27.5
£599.00
Wheel: 27,5''
Speed: 16
Geometry / Sizes
| Frame size | 400 | 440 | ||
| A | TOP TUBE | 560 | 580 | |
| B | SEAT TUBE | 400 | 440 | |
| C | REAR CENTER | 430 | 430 | |
| D | WHEEL BASE | 1052.0 | 1072.7 | |
| E | B.B. DROP | 45 | 45 | |
| F | SEAT ANGLE | 73° | 73° | |
| G | HEAD ANGLE | 70° | 70° | |
| H | OFFSET | 44 | 44 | |
| I | HEAD TUBE | 100 | 110 |
SIZE CHART

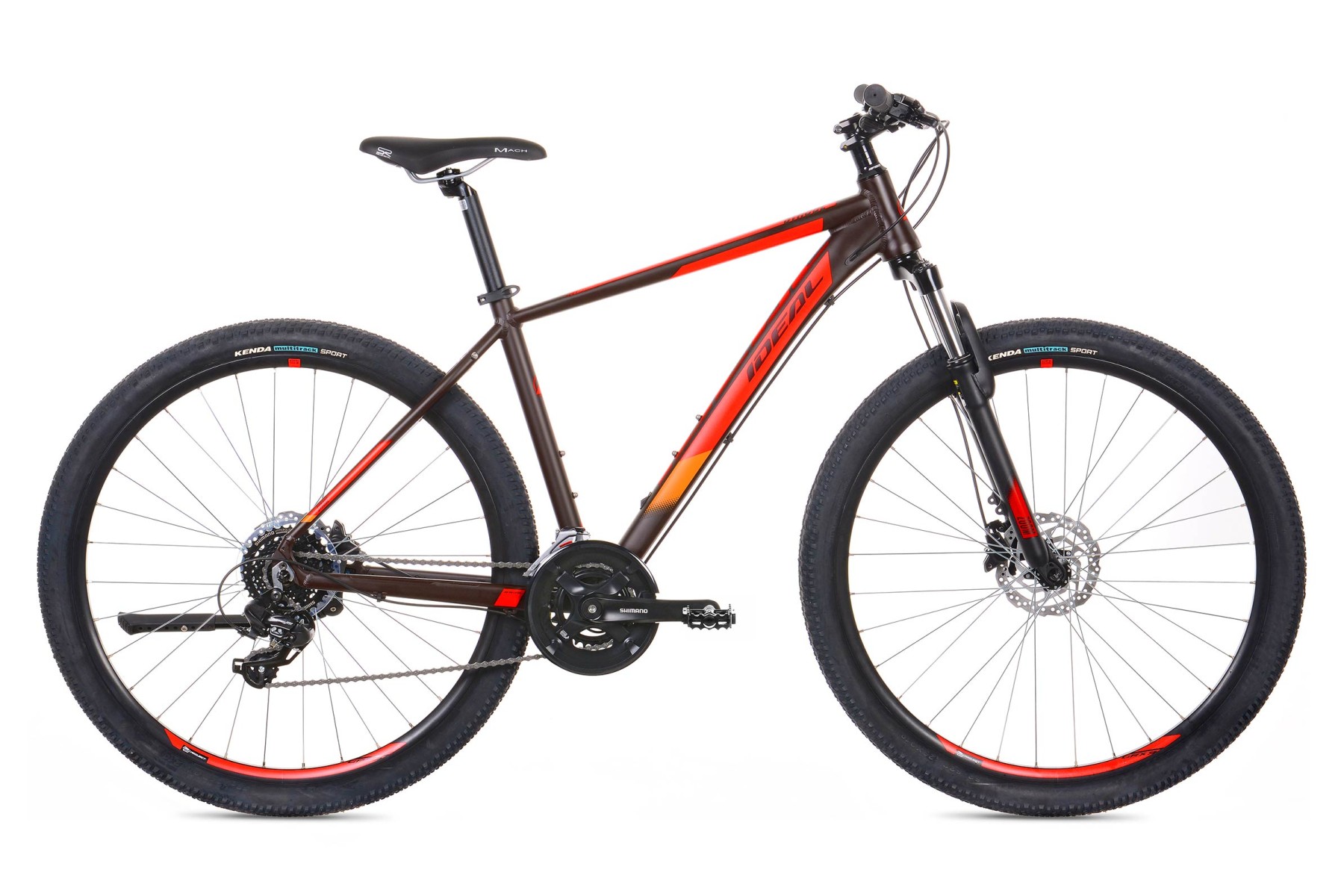

IDEAL Strobe 27.5" Mountain Bike
Data sheet
- Frame
- Hardtail, AL6061-T4/T6, hydroforming, tapered head tube, internal gear cables
- Size
- 40/44 cm
- Fork
- ZOOM 389A, 80mm, adjustable preload
- Front Derailleur
- Shimano FD-TY710-2
- Rear Derailleur
- Shimano RD-TX800
- Shifter
- Shimano ST-EF505
- Bottom Bracket
- Shimano BB-UN101
- Crankset
- Shimano FC-TY501-2, 46-30T
- Cassette Sprocket
- Shimano CS-HG31, 11-34T
- Chain
- KMC Z8
- Front Hub
- Shimano HB-TX505, center lock
- Rear Hub
- Shimano FH-TX505-8, center lock
- Tires
- Kenda K1153, 54-584 (27.5x2.10)
- Brakes
- Shimano BR-MT200 / BL-M505 hydraulic disc brakes, 160/160 mm
- Handlebar
- ID-Project riser bar aluminum, 680mm
- Stem
- ID-Project aluminum, 31.8 mm
- Seat Post
- ID-Project aluminum, 30.9 mm
- Saddle
- Selle Royal Mach
- Rims
- Cross X-6, 584-21 x 20.5mm
- Kickstand
- Atran Parko-HV
Wheel: 27,5''
Speed: 16
