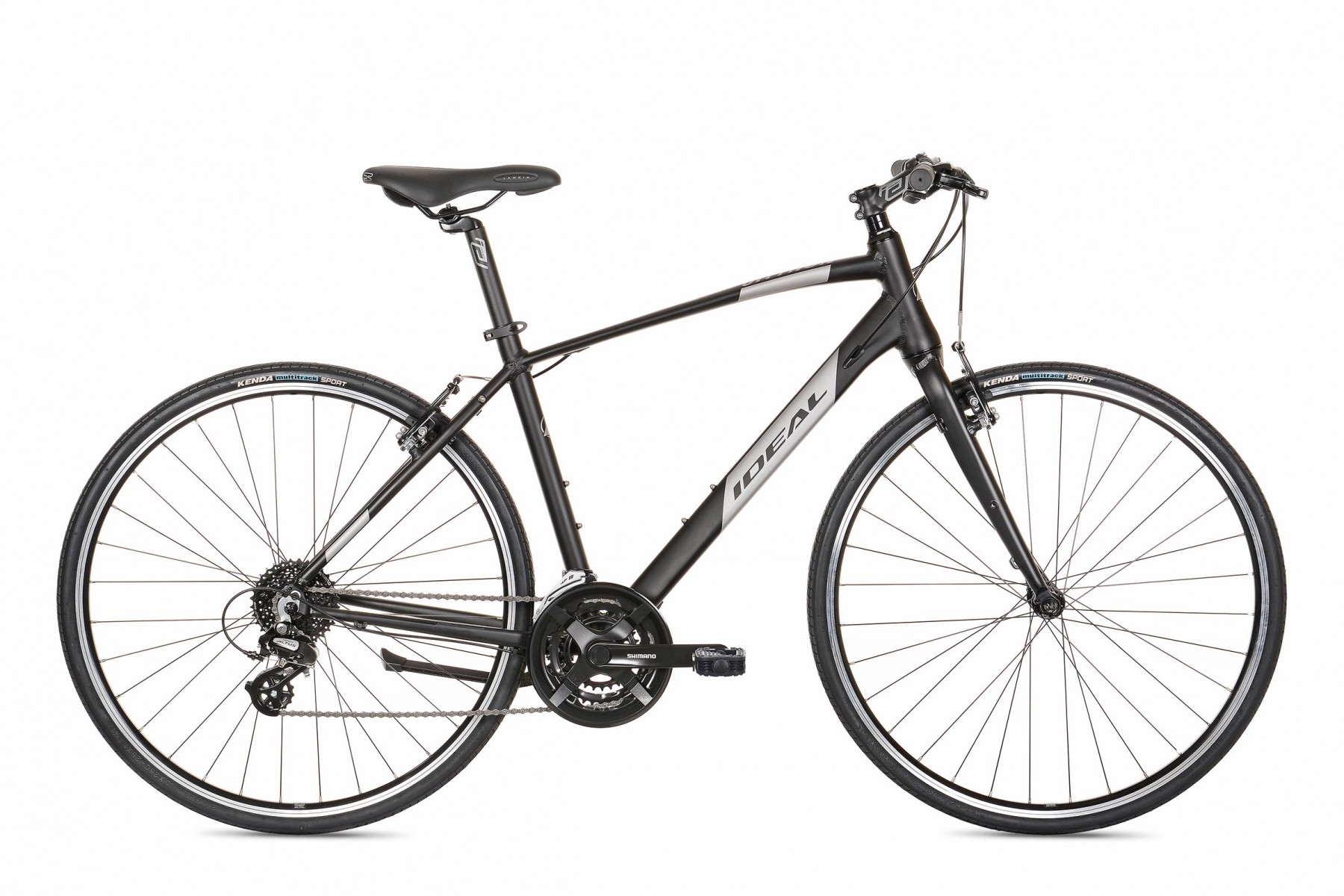

CITYRUN

£629.00

Wheel: 28"

Speed: 24

Geometry / Sizes

  Frame size S M L XL
    440 480 530 570
A TOP TUBE 547.4 557.7 575.2 596.4
A' TOP TUBE (parallel) 570 580 600 620
B SEAT TUBE 440 485 530 570
C REAR CENTER 445 445 445 445
D WHEEL BASE 1064.2 1072.6 1082.2 1102.9
E B.B. DROP 70 70 70 70
F SEAT ANGLE 73°15' 73°30' 73° 73°
G HEAD ANGLE 71° 71°30' 72° 72°
H OFFSET 51 51 51 51
I HEAD TUBE 150 165 190 225

SIZE CHART

IDEAL Bike 28 CITYRUN Urban

Data sheet

Frame
Hardtail Urban/Fitness, AL6061-T4/T6, hydroforming, tapered head tube, internal cable routing
Size
44/49/53/57 cm
Fork
Alloy rigid with straight blades
Front Derailleur
Shimano FD-TY710
Rear Derailleur
Shimano Altus, RD-M310
Shifter
Shimano ST-EF500
Bottom Bracket
Shimano BB-UN100
Crankset
Shimano FC-TY301, 48-38-28T
Cassette Sprocket
Shimano CS-HG31-8, 11-32T
Chain
KMC Z8
Front Hub
Shimano HB-TX500
Rear Hub
Shimano FH-TX800-8
Tires
Kenda K193 Kwest, reflective 28-622 (700x28C)
Brakes
Saccon Alloy V-brakes
Handlebar
ID-Project flat bar butted, 600mm, 5 degree backsweep
Stem
ID-Project alloy, 90mm extension, 15 degree angle
Seat Post
ID-Project, size 27.2mm, length 350mm, offset 24mm
Saddle
Selle Royal RVS Lancia
Rims
Mach-1 ER-10 622-19
Kickstand
Atran moove, center type
