CITYLIFE
£559.00
Wheel: 28"
Speed: 7
With basket
Geometry / Sizes
| Frame size | 400 | 460 | 510 | |
| A | TOP TUBE | 602 | 607 | 612 |
| B | SEAT TUBE | 400 | 460 | 510 |
| C | REAR CENTER | 460 | 460 | 460 |
| D | WHEEL BASE | 1108.2 | 1113.2 | 1118.2 |
| E | B.B. DROP | 72 | 72 | 72 |
| F | SEAT ANGLE | 72°30' | 72°30' | 72°30' |
| G | HEAD ANGLE | 70° | 70° | 70° |
| H | OFFSET | 45 | 45 | 45 |
| I | HEAD TUBE | 170 | 170 | 170 |

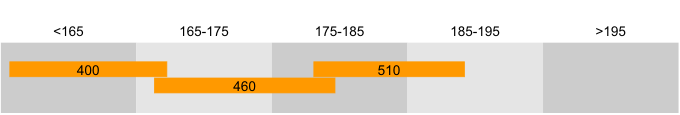

SIZE CHART

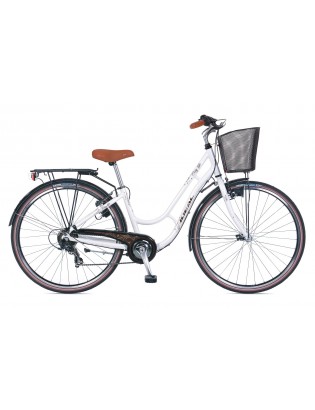

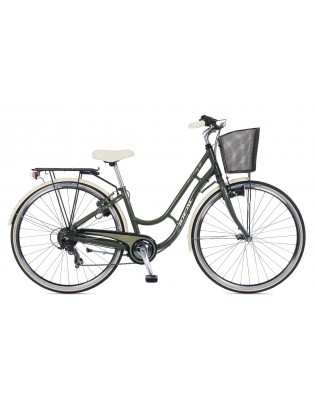

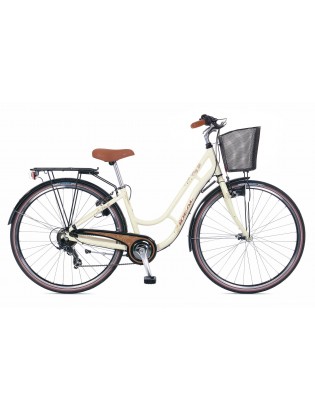

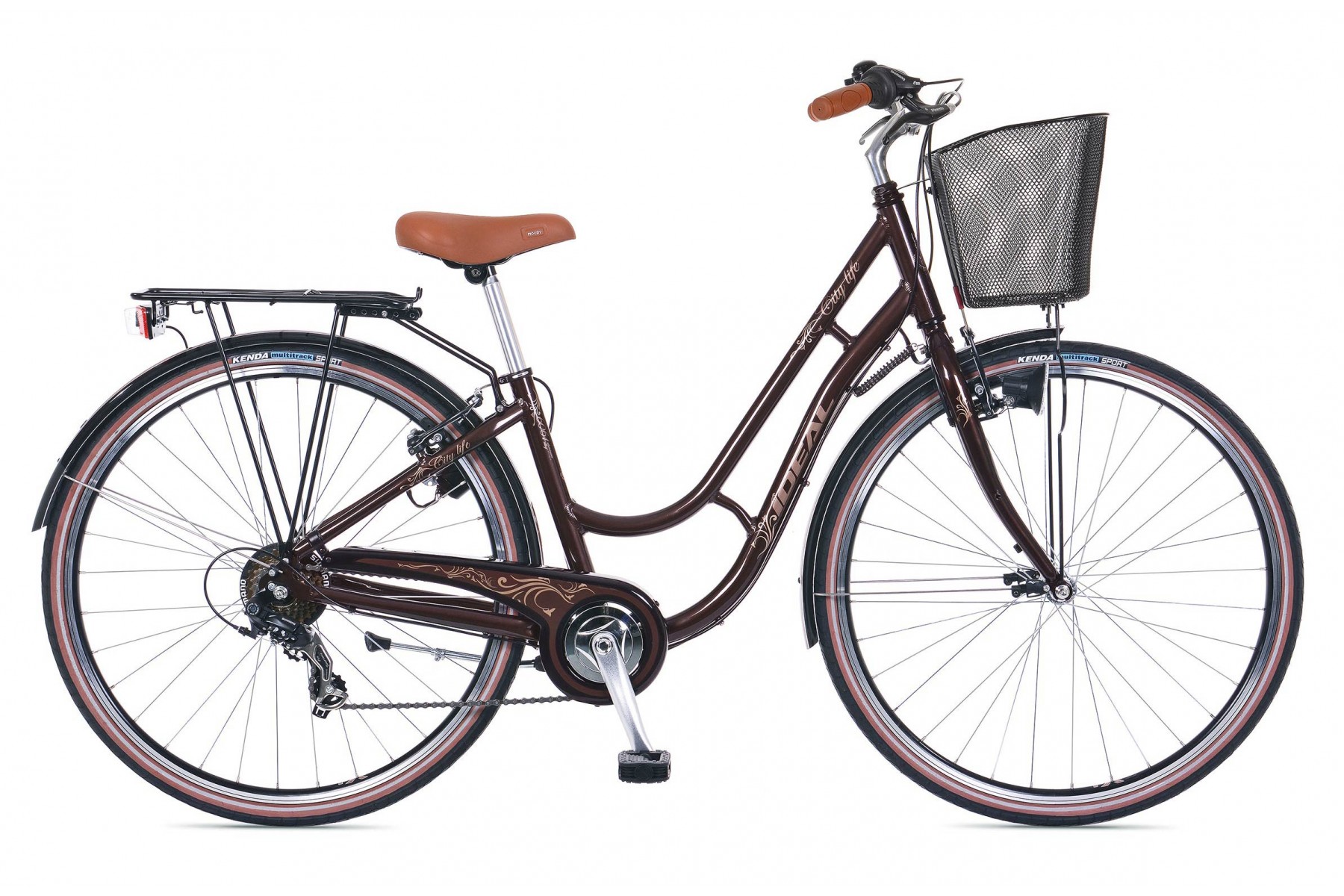

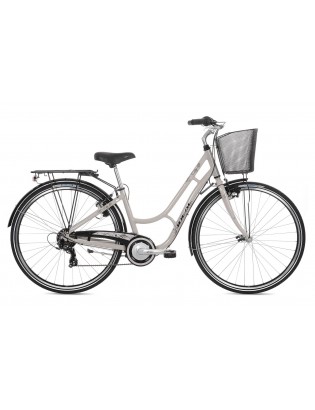

IDEAL CityLife 28" Bicycle with basket
Data sheet
- Frame
- City loop 28, AL6061-T4/T6
- Size
- 40/46/51 cm
- Fork
- Rigid, HiTen
- Rear Derailleur
- Shimano RD-TY300
- Shifter
- Shimano revo shifter, SL-RS36
- Bottom Bracket
- Thun basic plus
- Crankset
- Prowheel, 38T, 170 mm
- Cassette Sprocket
- Shimano MF-TZ500, 14-28T
- Chain
- KMC Z7
- Front Hub
- Joytech alloy
- Rear Hub
- Joytech alloy
- Tires
- Kenda K193 Kwest, reflective, 40-622
- Brakes
- Saccon Alloy V-brakes
- Handlebar
- ID PROJECT, city bar, 60 cm, backsweep 40°, rise 55 mm
- Stem
- ID PROJECT, 80 mm, threaded
- Seat Post
- ID PROJECT, alloy tube, 28.6, length 350 mm
- Saddle
- Selle Royal RVS Moody
- Lightning Set
- AXA Ellipsoid, 10 Lux front, AXA Slim Steady LED rear
- Mudguards
- SKS
- Rims
- Mach-1 ER-10
- Dynamo
- Basta Duo
- Kickstand
- Atran center kickstand
Wheel: 28"
Speed: 7
With basket
