- New
STROBE SUV Wav 29
£745.00
Wheel: 29"
Speed: 24
Dynamo hub and lights

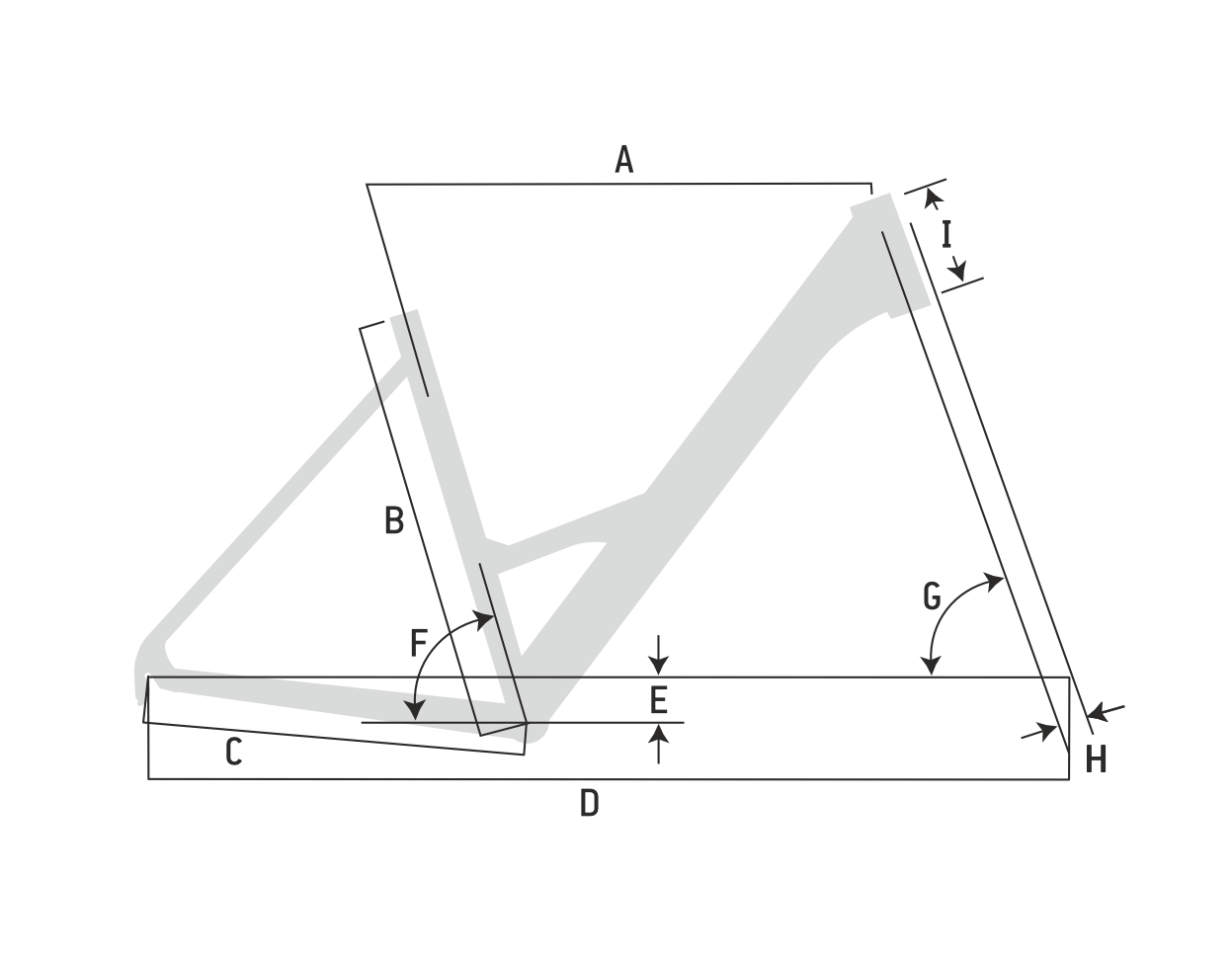

Geometry / Sizes
| Frame size | 460 | 500 | 540 | |
| A | Top tube | 580 | 600 | 620 |
| B | Seat tube | 460 | 500 | 540 |
| C | Rear center | 450 | 450 | 450 |
| D | Wheel base | 1101.1 | 1121.8 | 1142.5 |
| E | BB drop | 50 | 50 | 50 |
| F | Seat angle | 73° | 73° | 73° |
| G | Head angle | 69° | 69° | 69° |
| H | Offset | 42 | 42 | 42 |
| I | Head tube | 110 | 120 | 130 |
SIZE CHART

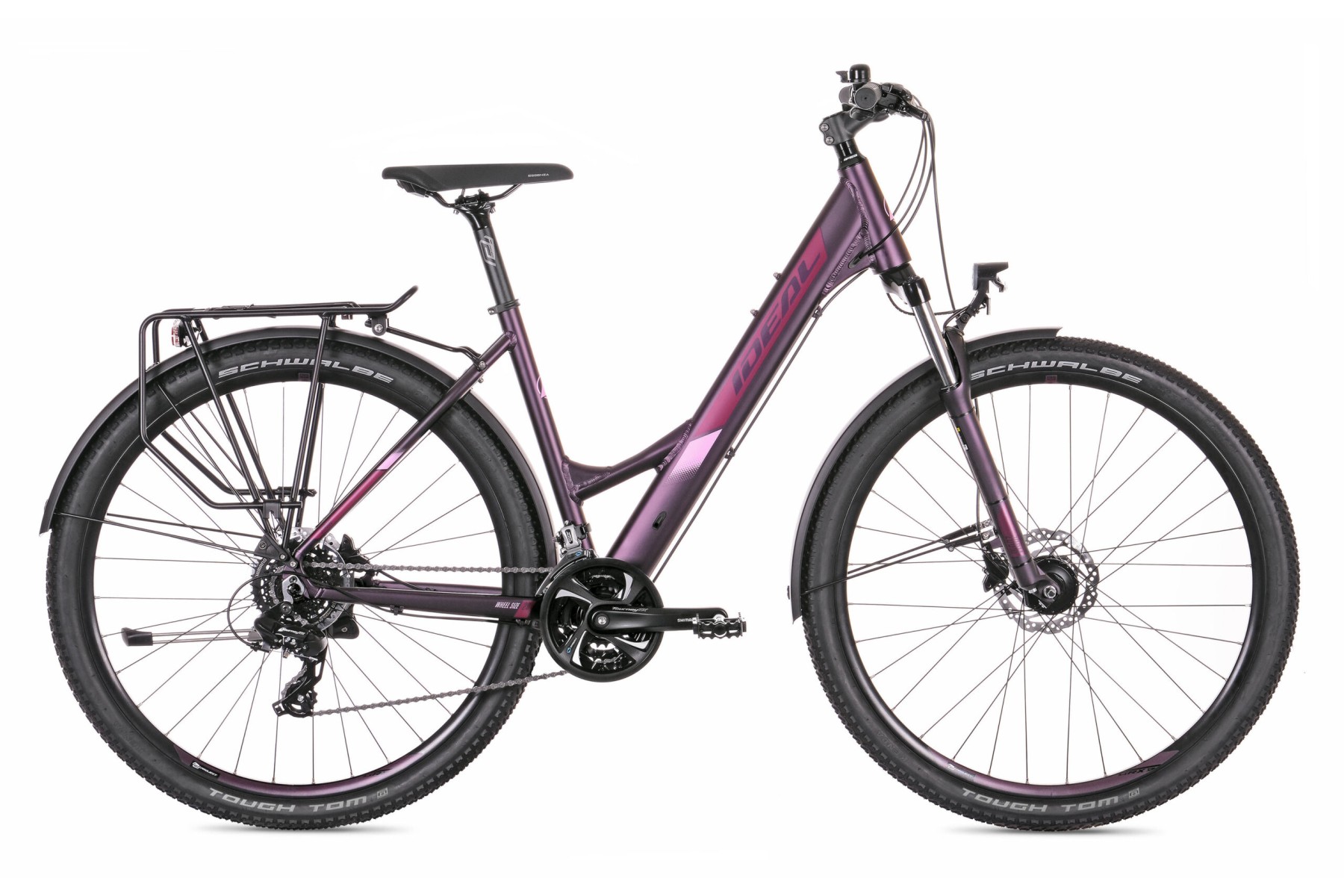

IDEAL Strobe SUV Wave 29 Mountain Bike
Data sheet
- Frame
- Hardtail, AL6061-T4/T6, hydroformed tubing, tapered head tube
- Size
- 27.5: 46/50 cm - 29: 50/54 cm
- Fork
- ZOOM 565D, 80 mm, 25.4 mm
- Front Derailleur
- Shimano FD-TY710-2
- Rear Derailleur
- Shimano RD-TX800
- Shifter
- Shimano ST-EF505
- Bottom Bracket
- Shimano BB-UN101
- Crankset
- Shimano FC-TX301, 42-34-24Z
- Cassette Sprocket
- Shimano CS-HG31, 11-34T
- Chain
- KMC Z8
- Front Hub
- Shimano DH-3D37, Hub dynamo
- Rear Hub
- Shimano FH-QC300
- Tires
- Schwalbe Tough Tom, K-Guard, 57-622 (29x2.25) / KENDA K1104A, 54-622
- Brakes
- Shimano BR-MT200 / BL-M505 hydraulic disc brakes, 160/160mm
- Handlebar
- ID-Project Riser Bar MTB-152-TP, 640 mm
- Stem
- ID-Project TDS-C41-5/8, 25.4 mm, 75/90 mm
- Seat Post
- ID-Project SPDC2, 30.9 mm
- Saddle
- Selle Royal Premium Essenza
- Lightning Set
- Herrmans H-Black MR GO, 80/100 Lumen / AXA Slim Steady
- Mudguards
- SKS PET A65R, 65 mm
- Carrier
- Standwell Alloy, Racktime Snapit System
- Rims
- Mach1 KARMA, 27.5: 21-584 - 29: 21-622
- Kickstand
- Atran Parko-DV Rear mounted
Wheel: 29"
Speed: 24
Dynamo hub and lights
