MULTIGO CUES LDS
£1,050.00
Wheel: 28''
Speed: 20
Geometry
| Frame size | 420 | 460 | 500 | 540 | |
| A | Top tube | 580 | 580 | 590 | 600 |
| B | Seat tube | 420 | 460 | 500 | 540 |
| C | Rear center | 450 | 450 | 450 | 450 |
| D | Wheel base | 1087.1 | 1087.1 | 1097.1 | 1108 |
| E | BB drop | 50 | 50 | 50 | 50 |
| F | Seat angle | 73° | 73° | 73° | 73° |
| G | Head angle | 70°30' | 70°30' | 70°30' | 70°30' |
| H | Offset | 45 | 45 | 45 | 45 |
| I | Head tube | 140 | 140 | 140 | 160 |
SIZE CHART

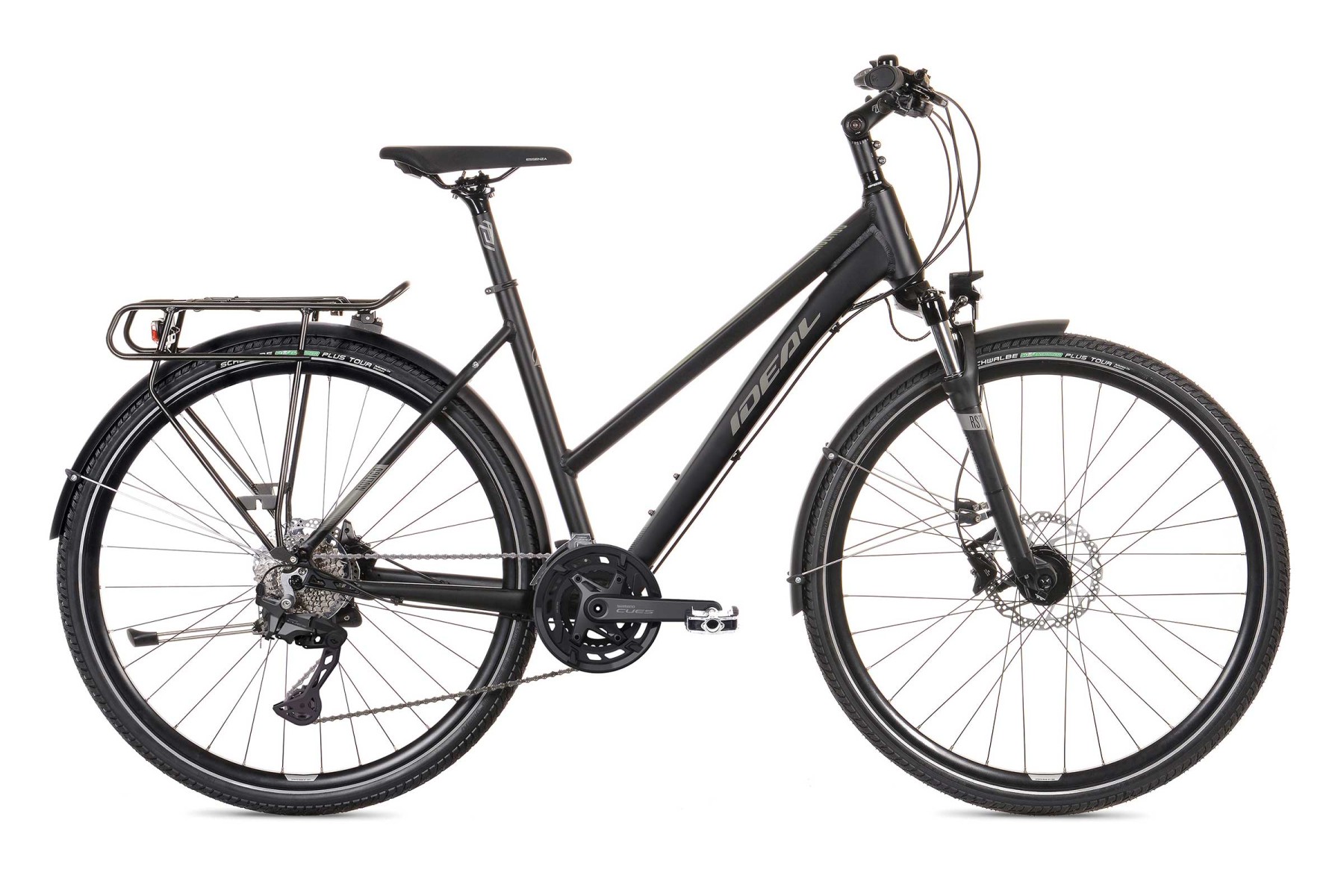

IDEAL 28" Multigo CUES LDS Touring Bike
Data sheet
- Frame
- Hardtail Touring, AL6061-T4/T6, hydroforming, internal cable routing
- Size
- 46/ 50/ 54 cm
- Fork
- RST VITA-TNL, 60 mm, 28.6 mm, Coil, Lock Out
- Front Derailleur
- Shimano CUES FD-U6010-L
- Rear Derailleur
- Shimano CUES RD-U6020-10 Shadow Design
- Shifter
- Shimano CUES SL-U6000-10
- Bottom Bracket
- Shimano BB-UR400
- Crankset
- Shimano CUES FC-U6000-2, 46-30T
- Cassette Sprocket
- Shimano CS-LG300-10, 11-39T
- Chain
- Shimano CN-LG500
- Chain Protector
- Herrmans Slim
- Front Hub
- Shimano DH-3D37, Hub dynamo
- Rear Hub
- Shimano FH-QC300
- Tires
- Schwalbe Energizer Plus Tour, GreenGuard, 50-622
- Brakes
- Shimano BR-MT200 / BL-MT201, Disc 180/160 mm
- Handlebar
- ID-Project Riser Bar HB-RB11L, 640 mm
- Grips
- Herrmans Lockable Grip Line
- Stem
- ID-Project AS-831, verstellbar, 31.8 mm, 90 mm
- Seat Post
- ID-Project SPDC2, 30.9 mm
- Saddle
- Selle Royal Premium Essenza
- Lightning Set
- Herrmans H-Black MR4, 120 Lumen / AXA Slim Steady
- Mudguards
- SKS PET A56, 56 mm
- Carrier
- ID-Project, Racktime Snapit System
- Rims
- Mach1 KARMA, 21-622
- Kickstand
- Atran Parko-DV Rear mounted
Wheel: 28''
Speed: 20
