TRAVELON GTS Cues
£989.00
Wheel: 28''
Speed: 18
Dynamo hub with lights
Geometry
| Frame size | 500 | 540 | ||||
| A | TOP TUBE | 590 | 600 | |||
| B | SEAT TUBE | 500 | 540 | |||
| C | REAR CENTER | 450 | 450 | |||
| D | WHEEL BASE | 1096.6 | 1105.9 | |||
| E | BB DROP | 50 | 50 | |||
| F | SEAT ANGLE | 73 ° | 73 ° | |||
| G | HEAD ANGLE | 70 ° 30 ' | 70 ° 30 ' | |||
| H | OFFSET | 45 | 45 | |||
| I | HEAD TUBE | 130 | 150 |
SIZE CHART

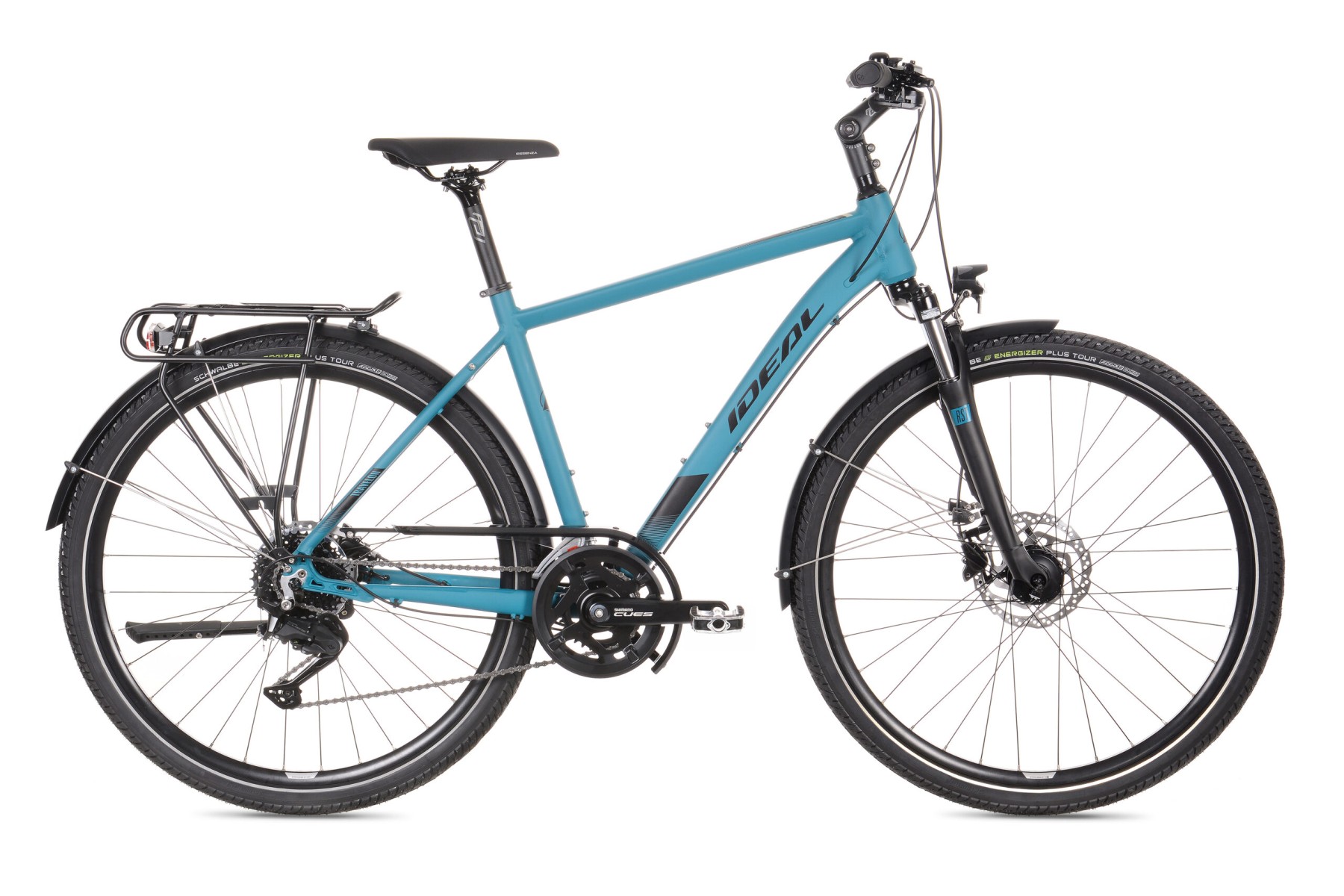

IDEAL Travelon GTS Cues Touring Bike
Data sheet
- Frame
- Hardtail Touring, AL6061-T4/T6, hydroforming, internal cable routing
- Size
- 50/ 54/ 58 cm
- Fork
- RST Nova-MLC, 60 mm, 28.6 mm, Coil, Lock Out
- Front Derailleur
- Shimano CUES FD-U4010-L
- Rear Derailleur
- Shimano CUES RD-U3020, SGS Shadow Design
- Shifter
- Shimano CUES SL-U4000-9
- Bottom Bracket
- Shimano BB-UR400
- Crankset
- Shimano CUES FC-U4010-2, 46-30Z
- Cassette Sprocket
- Shimano CS-LG300-9, 11-36Z
- Chain
- Shimano CN-LG500
- Chain Protector
- Herrmans Slim
- Front Hub
- Shimano DH-3D37, Hub dynamo
- Rear Hub
- Shimano FH-QC300
- Tires
- Schwalbe Energizer Plus Tour, GreenGuard, 50-622
- Brakes
- Shimano BR-MT200 / BL-MT201, Disc 180/160 mm
- Handlebar
- ID-Project Riser Bar HB-RB11L, 640 mm
- Grips
- Herrmans Lockable Grip Line
- Stem
- ID-Project AS-831, verstellbar, 31.8 mm, 90 mm
- Seat Post
- ID-Project SPDC2, 30.9 mm
- Saddle
- Selle Royal Premium Essenza
- Lightning Set
- Herrmans H-Black MR4, 120 Lumen / AXA Slim Steady
- Mudguards
- SKS PET A56, 56 mm
- Carrier
- ID-Project, Racktime Snapit System
- Rims
- Mach1 KARMA, 21-622
- Kickstand
- Atran Parko-DV Rear mounted
Wheel: 28''
Speed: 18
Dynamo hub with lights
