STROBE SUV GTS 29
£745.00
Wheel: 29''
Speed: 24
Dynamo hub and lights
Geometry / Sizes
| Frame size | 440 | 480 | 520 | |
| A | TOP TUBE | 600 | 620 | 640 |
| B | SEAT TUBE | 440 | 480 | 520 |
| C | REAR CENTER | 440 | 440 | 440 |
| D | WHEEL BASE | 1077.2 | 1097.2 | 1117.4 |
| E | B.B. DROP | 60 | 60 | 60 |
| F | SEAT ANGLE | 72.5° | 72.5° | 72.5° |
| G | HEAD ANGLE | 71° | 71° | 71° |
| H | OFFSET | 42 | 42 | 42 |
| I | HEAD TUBE | 105 | 110 | 120 |
SIZE CHART

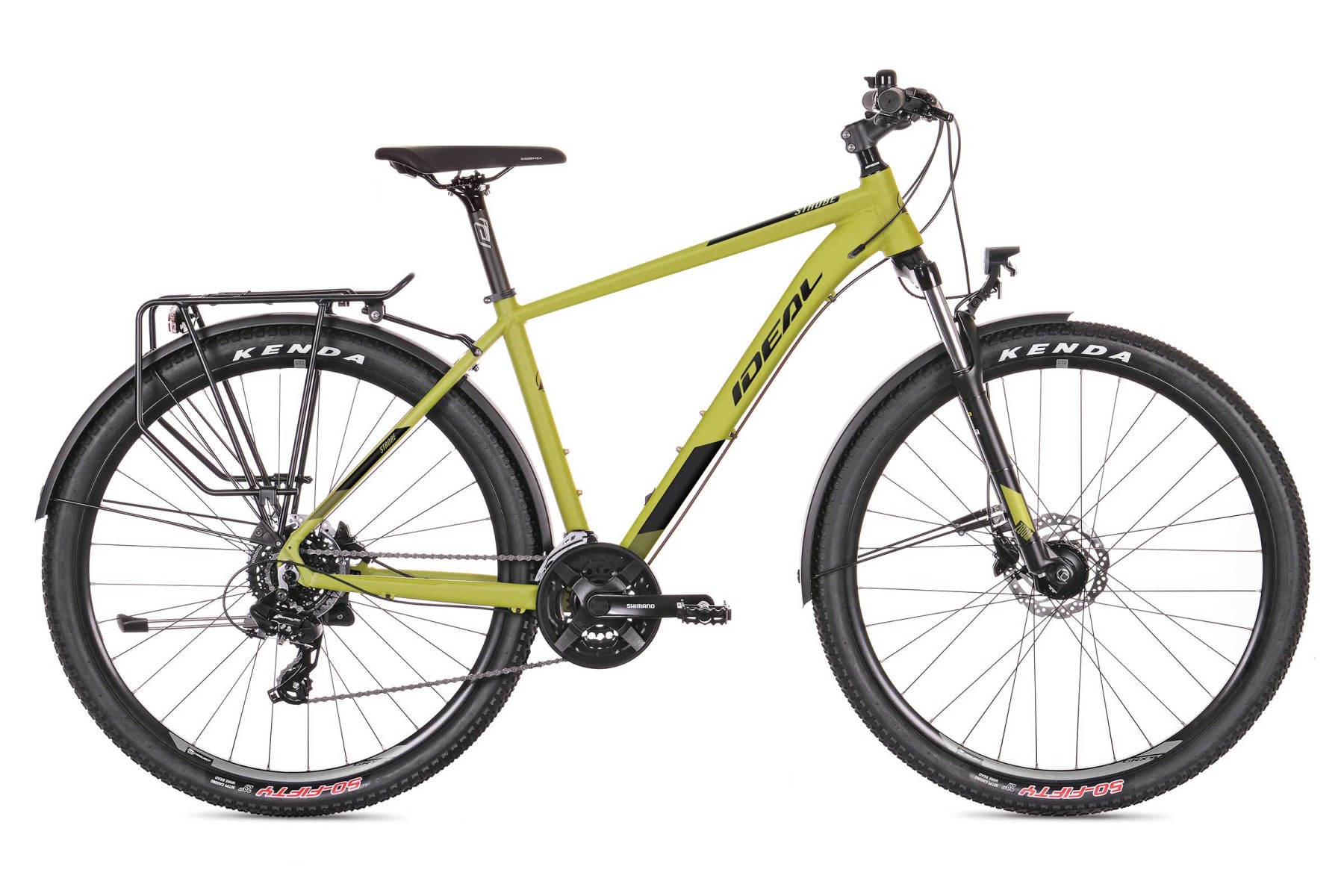

IDEAL Strobe Suv GTS 29 Mountain Bike
Data sheet
- Frame
- Hardtail, AL6061-T4/T6, hydroforming, tapered head tube, internal cable routing
- Size
- 44/48/52/56 cm
- Fork
- ZOOM 565D, 80 mm, 25.4 mm
- Front Derailleur
- Shimano Tourney, FD-TY600
- Rear Derailleur
- Shimano RD-TX800 SGS
- Shifter
- Shimano ST-EF505
- Bottom Bracket
- Shimano BB-UN101
- Crankset
- Shimano FC-TX301, 42-34-24Z
- Cassette Sprocket
- Shimano CS-HG31, 11-34T
- Chain
- KMC Z8
- Front Hub
- Shimano DH-3D37, Hub dynamo
- Rear Hub
- Shimano FH-QC300
- Tires
- Schwalbe Tough Tom, K-Guard, 57-622 (29x2.25) / KENDA K1104A, 54-622
- Brakes
- Shimano BR-MT200 / BL-M505 hydraulic disc brakes, 160/160mm
- Handlebar
- ID-Project Riser Bar MTB-152-TP, 640 mm
- Stem
- ID-Project TDS-C41-5/8, 25.4 mm, 75/90 mm
- Seat Post
- ID-Project SPDC2, 30.9 mm
- Saddle
- Selle Royal Premium Essenza
- Lightning Set
- Herrmans H-Black MR GO, 80/100 Lumen / AXA Slim Steady
- Mudguards
- SKS PET A65R, 65 mm
- Carrier
- ID-Project, Racktime Snapit System
- Rims
- Mach1 KARMA, 21-622
- Kickstand
- Atran Parko-DV Rear mounted
Wheel: 29''
Speed: 24
Dynamo hub and lights
