FUNCORE
£699.00
Wheel: 28''
Speed: 9
Geometry / Sizes
| Frame size | S | M | L | XL | |
| 440 | 480 | 530 | 570 | ||
| A | TOP TUBE | 547.4 | 557.7 | 575.2 | 596.4 |
| A' | TOP TUBE (parallel) | 570 | 580 | 600 | 620 |
| B | SEAT TUBE | 440 | 485 | 530 | 570 |
| C | REAR CENTER | 445 | 445 | 445 | 445 |
| D | WHEEL BASE | 1064.2 | 1072.6 | 1082.2 | 1102.9 |
| E | B.B. DROP | 70 | 70 | 70 | 70 |
| F | SEAT ANGLE | 73°15' | 73°30' | 73° | 73° |
| G | HEAD ANGLE | 71° | 71°30' | 72° | 72° |
| H | OFFSET | 51 | 51 | 51 | 51 |
| I | HEAD TUBE | 150 | 165 | 190 | 225 |

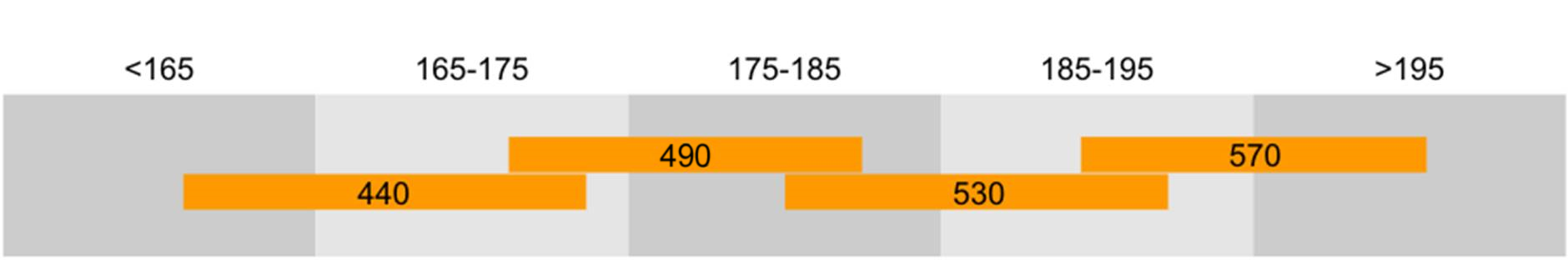

SIZE CHART

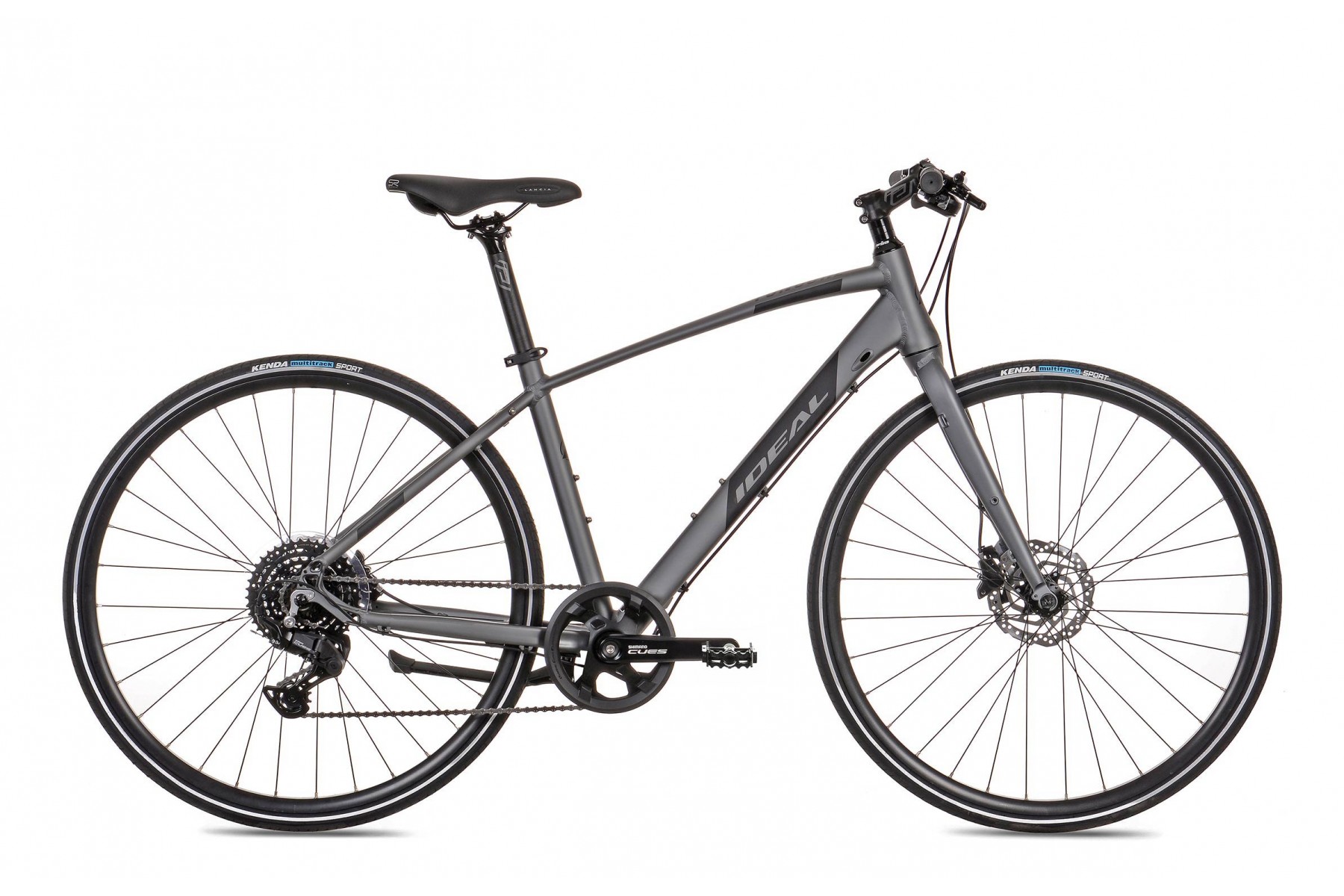

IDEAL Bike 28 FunCore Urban
Data sheet
- Frame
- Hardtail Urban/Fitness, AL6061-T4/T6, hydroforming, tapered head tube, internal cable routing
- Size
- 44/49/53/57 cm
- Fork
- Aluminium with straight rigid blades
- Rear Derailleur
- Shimano CUES RD-U4000
- Shifter
- Shimano CUES SL-U4000-9R
- Bottom Bracket
- Shimano BB-UN101
- Crankset
- Shimano CUES FC-U4000-1, 42T
- Cassette Sprocket
- Shimano CUES CS-LG300-9, 11-41T
- Chain
- Shimano CN-LG500
- Front Hub
- Shimano HB-TX505B
- Rear Hub
- Shimano FH-TX500-8
- Tires
- Kenda K193 Kwest, reflective 28-622 (700x28C)
- Brakes
- Shimano BR-MT200 / BL-MT201 Hydraulic disc brakes, 180/160 mm
- Handlebar
- id-Project aluminium flat bar butted, 600 mm
- Stem
- id-Project aluminium, 25.4 mm
- Seat Post
- id-Project aluminium, 30.9 mm
- Saddle
- Sell Royal RVS Lancia
- Rims
- Cross X-6, 622-21
- Kickstand
- Atran moove, center type
