TRAVELON GTS
£899.00
Wheel: 28''
Speed: 27
Geometry
| Frame size | 500 | 540 | ||||
| A | TOP TUBE | 590 | 600 | |||
| B | SEAT TUBE | 500 | 540 | |||
| C | REAR CENTER | 450 | 450 | |||
| D | WHEEL BASE | 1096.6 | 1105.9 | |||
| E | BB DROP | 50 | 50 | |||
| F | SEAT ANGLE | 73 ° | 73 ° | |||
| G | HEAD ANGLE | 70 ° 30 ' | 70 ° 30 ' | |||
| H | OFFSET | 45 | 45 | |||
| I | HEAD TUBE | 130 | 150 |
SIZE CHART

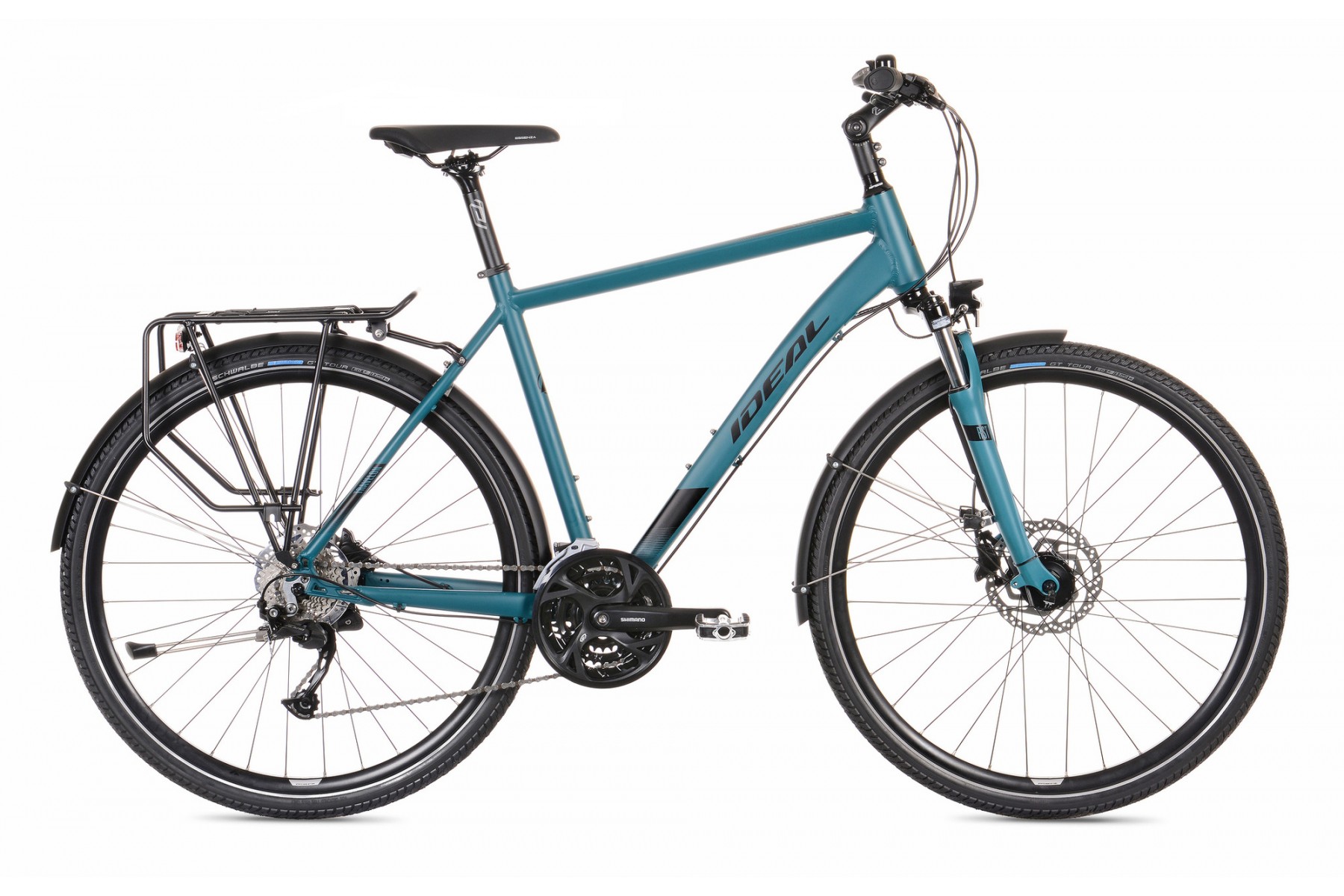

Ideal 28" Travelon GTS Touring Bike
Data sheet
- Frame
- Hardtail Touring, AL6061-T4/T6, hydroforming, internal cable routing
- Size
- 50/54 cm
- Fork
- RST Nova-ML, 60 mm, lockout, adjustable preload
- Front Derailleur
- Shimano Altus, FD-M370
- Rear Derailleur
- Shimano Deore, RD-M591SGS
- Shifter
- Shimano ST-EF505
- Bottom Bracket
- Shimano BB-UN101
- Crankset
- Shimano FC-M371, 48-36-26T
- Cassette Sprocket
- Shimano CS-HG201-9, 9-SPEED, 11-32T
- Chain
- Shimano CN-HG53
- Chain Protector
- Herrmans Slim
- Front Hub
- Shimano DH-3D37 hub dynamo, QR center lock
- Rear Hub
- Shimano FH-TX505-8
- Tires
- Schwalbe Marathon GT Tour, DualGuard, 47-622 (28x1.75)
- Brakes
- Shimano BR-M200 / BL-M505 hydraulic disc brakes, 180/160 mm
- Handlebar
- id-Project riser bar aluminum, 640mm wide, 15mm rise, 5 ° backsweep, 31.8mm barbore
- Grips
- Herrmans Lockable Grip Line
- Stem
- id-Project aluminum, 90/110 mm extension, 6 ° angle, 31.8mm barbore
- Seat Post
- id-Project aluminum, size 30.9 mm, length 350 mm, zero offset
- Saddle
- Selle Roual Premium, New Essenza H / D, Moderate
- Lightning Set
- Herrmans H-Black MR4 front, 40Lux / AXA Slim rear
- Mudguards
- SKS PET, 56 mm
- Carrier
- Standwell, aluminum
- Rims
- Cross x-6, 622-21 x 20.5 mm
- Kickstand
- Atran rear kickstand
Wheel: 28''
Speed: 27
