STROBE 29
£599.00
Wheel: 29''
Speed: 16
Geometry / Sizes
| Frame size | 440 | 480 | 520 | |
| A | TOP TUBE | 600 | 620 | 640 |
| B | SEAT TUBE | 440 | 480 | 520 |
| C | REAR CENTER | 440 | 440 | 440 |
| D | WHEEL BASE | 1077.2 | 1097.2 | 1117.4 |
| E | B.B. DROP | 60 | 60 | 60 |
| F | SEAT ANGLE | 72.5° | 72.5° | 72.5° |
| G | HEAD ANGLE | 71° | 71° | 71° |
| H | OFFSET | 42 | 42 | 42 |
| I | HEAD TUBE | 105 | 110 | 120 |
SIZE CHART

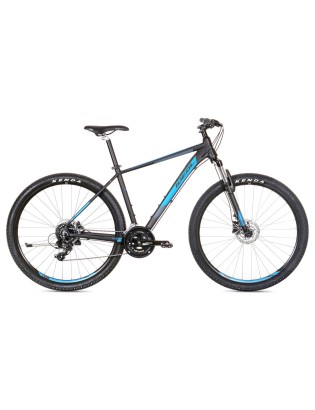

IDEAL Strobe 29 Mountain Bike
Data sheet
- Frame
- Hardtail, AL6061-T4/T6, hydroforming, tapered head tube, internal cable routing
- Size
- 44/48/52 cm
- Fork
- ZOOM 389A, 80mm, adjustable preload
- Front Derailleur
- Shimano FD-TY710-2
- Rear Derailleur
- Shimano RD-TX800
- Shifter
- Shimano ST-EF505
- Bottom Bracket
- Shimano BB-UN101
- Crankset
- Shimano FC-TY501-2, 46-30T
- Cassette Sprocket
- Shimano CS-HG31, 11-34T
- Chain
- KMC Z8
- Front Hub
- Shimano HB-TX505, center lock
- Rear Hub
- Shimano FH-TX505-8, center lock
- Tires
- Kenda K1153, 54-622 (29x2.10)
- Brakes
- Shimano BR-MT200 / BL-M505 hydraulic disc brakes, 160/160mm
- Handlebar
- ID-Project riser bar aluminum, 680mm
- Stem
- ID-Project aluminum, 31.8 mm
- Seat Post
- ID-Project aluminum, 30.9 mm
- Saddle
- Selle Royal Mach
- Rims
- Cross X-6, 622-21 x 20.5mm
- Kickstand
- Atran Parko-HV
Wheel: 29''
Speed: 16
