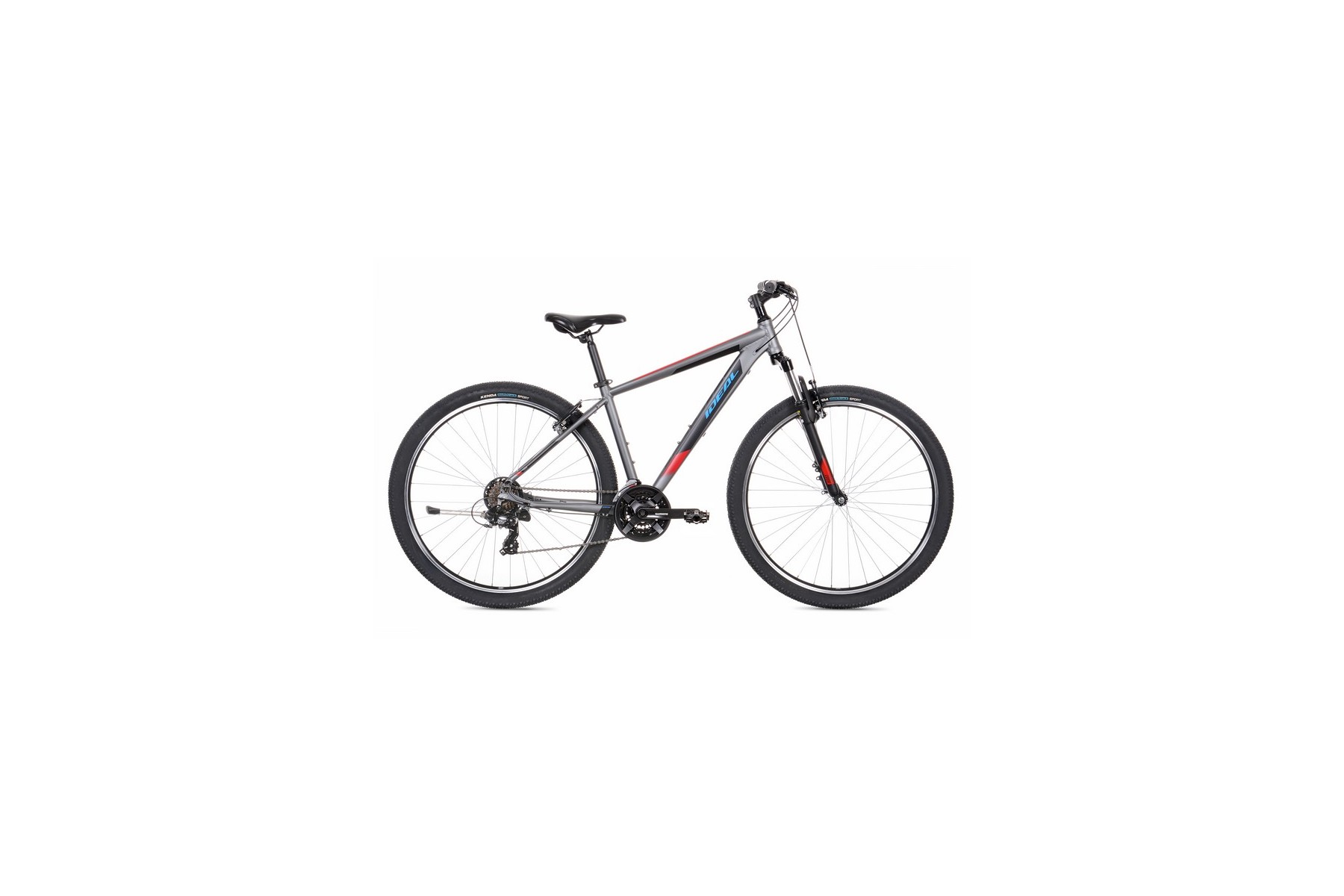

Trial 29"
£505.00
Wheel: 29"
Speed: 21
Geometry / Sizes
| Frame size | 440 | 480 | 520 | ||
| A | TOP TUBE | 580 | 600 | 620 | |
| B | SEAT TUBE | 440 | 480 | 520 | |
| C | REAR CENTER | 430 | 430 | 430 | |
| D | WHEEL BASE | 1072.7 | 1093.3 | 1113.8 | |
| E | BB DROP | 45 | 45 | 45 | |
| F | SEAT ANGLE | 73 ° | 73 ° | 73 ° | |
| G | HEAD ANGLE | 70 ° | 70 ° | 70 ° | |
| H | OFFSET | 44 | 44 | 44 | |
| I | HEAD TUBE | 110 | 120 | 130 |
SIZE CHART
Ideal Trial 29
Data sheet
- Frame
- Hardtail, AL6061-T4/T6, hydroforming, internal cable routing
- Size
- 44/48/52 cm
- Fork
- ZOOM 389A, 80mm, adjustable preload
- Front Derailleur
- Shimano FD-TY500-TS6 / TY600-L6
- Rear Derailleur
- Shimano RD-TY300
- Shifter
- Shimano ST-EF500
- Bottom Bracket
- Shimano BB-UN101
- Crankset
- Shimano FC-TY301, 42-34-24T
- Cassette Sprocket
- Shimano MF-TZ500-7-CP with spoke protector, 14-28T
- Chain
- KMC Z7
- Front Hub
- Joytech Alloy / KT Alloy
- Rear Hub
- Joytech Alloy / KT Alloy
- Tires
- Kenda K1153, 29x2.10
- Brakes
- Saccon, alloy V-brakes
- Handlebar
- Riser bar, 640 mm
- Stem
- Ahead, 28.6 mm
- Seat Post
- 30.9 mm
- Saddle
- Selle Royal ONE
- Rims
- Mach1, 622-191, 19mm
- Kickstand
- Atran rear kickstand
Wheel: 29"
Speed: 21
