MOOVIC Lady
£505.00
Wheel: 28"
Speed: 21
Sizes / Geometry
| Frame size | 420 | 460 | |||
| A | TOP TUBE | 580 | 580 | ||
| B | SEAT TUBE | 420 | 460 | ||
| C | REAR CENTER | 450 | 450 | ||
| D | WHEEL BASE | 1084.5 | 1084.5 | ||
| E | B.B. DROP | 50 | 50 | ||
| F | SEAT ANGLE | 73° | 73° | ||
| G | HEAD ANGLE | 70°30' | 70°30' | ||
| H | OFFSET | 45 | 45 | ||
| I | HEAD TUBE | 120 | 120 |

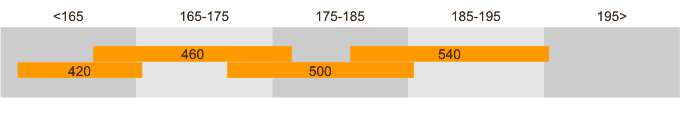

SIZE Chart
MOOVIC 28 Lady
Data sheet
- Frame
- Cross/Trekking 28, AL6061-T4/T6, hydroforming, internal shifting cables
- Size
- 46/50/54 cm
- Fork
- ZOOM 128, 30 mm
- Front Derailleur
- Shimano FD-TY710-TS
- Rear Derailleur
- Shimano RD-TY300
- Shifter
- Shimano ST-EF500
- Bottom Bracket
- Shimano BB-UN100
- Crankset
- Shimano FC-TY301, 48-38-28T
- Cassette Sprocket
- Shimano MF-TZ500, 14-28T
- Chain
- KMC Z51
- Front Hub
- Joytech
- Rear Hub
- Joytech
- Tires
- Kenda K935 42-622 (700x40C)
- Brakes
- Saccon alloy V-brakes
- Handlebar
- Riser bar, 640mm
- Stem
- 25.4 mm
- Seat Post
- 30.9 mm
- Saddle
- Selle Royal One
- Rims
- Mach1, 622-19, 19mm
- Weight (approx):
- 14.1 kg
- Kickstand
- Atran rear kickstand
Wheel: 28"
Speed: 21
