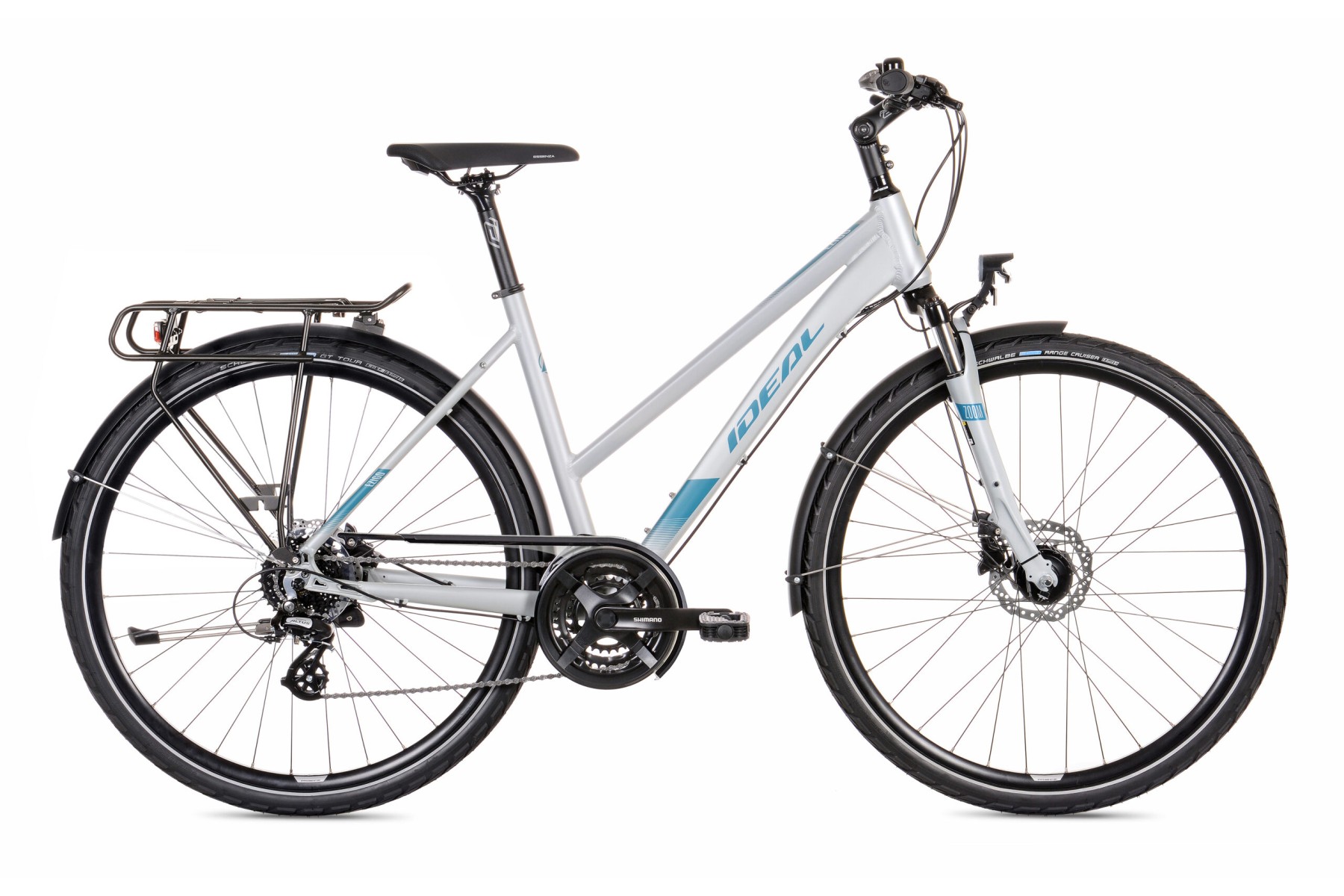

EZIGO LDS
£799.00
Wheel: 28"
Speed: 24
Dynamo hub with lights
Geometry / Sizes
| Frame size | 420 | 460 | 500 | 540 | |
| A | Top tube | 580 | 580 | 590 | 600 |
| B | Seat tube | 420 | 460 | 500 | 540 |
| C | Rear center | 450 | 450 | 450 | 450 |
| D | Wheel base | 1087.1 | 1087.1 | 1097.1 | 1108 |
| E | BB drop | 50 | 50 | 50 | 50 |
| F | Seat angle | 73° | 73° | 73° | 73° |
| G | Head angle | 70°30' | 70°30' | 70°30' | 70°30' |
| H | Offset | 45 | 45 | 45 | 45 |
| I | Head tube | 140 | 140 | 140 | 160 |
SIZE CHART
IDEAL Bike 28 EZIGO-LDS Touring
Data sheet
- Frame
- Trekking 28, AL6061-T4/T6, hydroforming, internal shifting cables
- Size
- 46/50/54 cm
- Fork
- ZOOM 141D, 45 mm, 25.4 mm
- Front Derailleur
- Shimano Altus FD-M313
- Rear Derailleur
- Shimano Altus RD-M310
- Shifter
- Shimano ST-EF505
- Bottom Bracket
- Shimano BB-UN100
- Crankset
- Shimano FC-TY301, 48-38-28T, 170mm
- Cassette Sprocket
- Shimano CS-HG31, 11-13-15-18-21-24-28-32T
- Chain
- KMC Z8
- Chain Protector
- Herrmans Slim
- Front Hub
- Shimano DH-3D37, Hub dynamo
- Rear Hub
- Shimano FH-QC300
- Tires
- Schwalbe Range Cruiser, K-Guard, 47-622
- Brakes
- Shimano BR-MT200 / ST-EF505, Disc 160/160 mm
- Handlebar
- ID-Project Riser Bar HB-RB11L, 640 mm
- Grips
- Herrmans Lockable Grip Line
- Stem
- ID-Project AS-831, adjustable, 31.8 mm, 90 mm
- Seat Post
- ID-Project, 30.9 mm SP-602
- Saddle
- Selle Royal Premium Essenza
- Lightning Set
- Herrmans H-Black MR GO, 80/100 Lumen / AXA Slim Steady
- Mudguards
- SKS PET, 51 mm
- Carrier
- ID-Project, Racktime Snapit System
- Rims
- Mach1 KARMA, 21-622
- Kickstand
- Atran Stylo-HV, rear kickstand
Wheel: 28"
Speed: 24
Dynamo hub with lights
