OPTIMUS
£699.00
Wheel: 28''
Speed: 18 (2x9)
Geometry / Sizes
| Frame size | 460 | 500 | 540 | |
| A | TOP TUBE | 580 | 590 | 600 |
| B | SEAT TUBE | 460 | 500 | 540 |
| C | REAR CENTER | 450 | 450 | 450 |
| D | WHEEL BASE | 1084.5 | 1096.6 | 1105.9 |
| E | BB DROP | 50 | 50 | 50 |
| F | SEAT ANGLE | 73 ° | 73 ° | 73 ° |
| G | HEAD ANGLE | 70 ° 30 ' | 70 ° 30 ' | 70 ° 30 ' |
| H | OFFSET | 45 | 45 | 45 |
| I | HEAD TUBE | 120 | 130 | 150 |
SIZE CHART

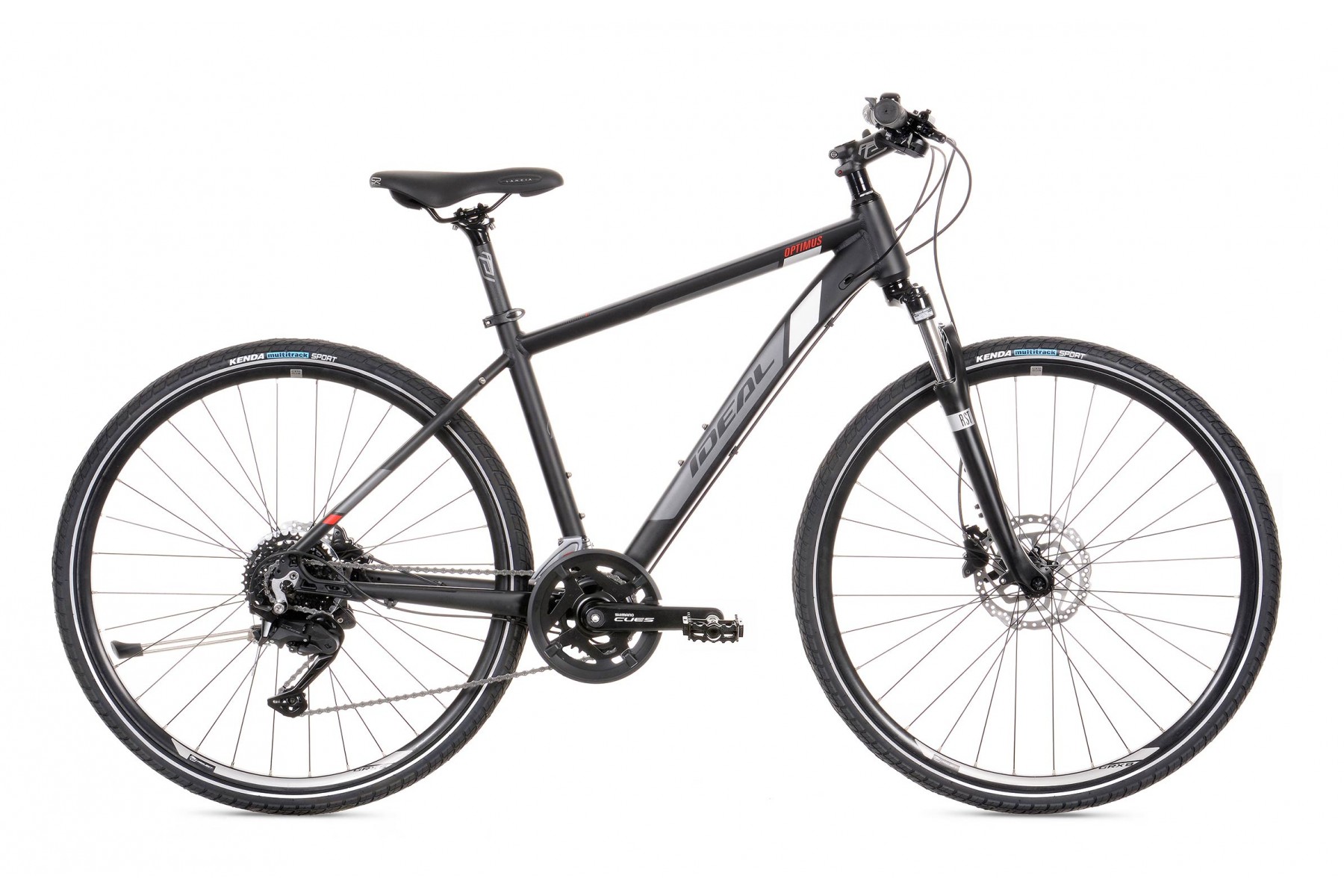

IDEAL OPTIMUS 28 Adventure Bike
Data sheet
- Frame
- Cross / Trekking 28, AL6061-T4 / T6, hydroforming, internal gear cables
- Size
- 46/50/54 cm
- Fork
- RST Nova-MLC, 60 mm, 28.6 mm stanchions, MLO, adjustable preload
- Front Derailleur
- Shimano Cues, FD-U4010
- Rear Derailleur
- Shimano Cues, RD-U3020
- Shifter
- Shimano Cues SL-U4000
- Bottom Bracket
- Shimano BB-UN101
- Crankset
- Shimano Cues FC-U4010, 46-30T
- Cassette Sprocket
- Shimano Cues CS-LG300, 11-36T
- Chain
- Shimano CN-LG500
- Front Hub
- Shimano HB-TX505, center lock
- Rear Hub
- Shimano FH-TX505-8, center lock
- Tires
- Kenda K1172, reflective, 42-622 (700x40C)
- Brakes
- Shimano BR-MT200 / BL-MT201, hydraulic, 180/160 mm
- Handlebar
- id-Project riser bar Aluminium, 680 mm
- Stem
- id-Project aluminum, 31.8 mm
- Seat Post
- id-Project aluminum, 30.9 mm
- Saddle
- Selle Royal RVS Lancia
- Rims
- Cross X-6, 622-21 x 20.5 mm
- Kickstand
- Atran rear kickstand
Wheel: 28''
Speed: 18 (2x9)
