CROSSMO
£599.00
Wheel: 28''
Speed: 24
Geometry / Sizes
| Frame size | 420 | 460 | 500 | 540 | 580 | |
| A | TOP TUBE | 580 | 580 | 590 | 600 | 615 |
| B | SEAT TUBE | 420 | 460 | 500 | 540 | 580 |
| C | REAR CENTER | 450 | 450 | 450 | 450 | 450 |
| D | WHEEL BASE | 1084.5 | 1084.5 | 1096.6 | 1105.9 | 1121.9 |
| E | BB DROP | 50 | 50 | 50 | 50 | 50 |
| F | SEAT ANGLE | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| G | HEAD ANGLE | 70 ° 30 ' | 70 ° 30 ' | 70 ° 30 ' | 70 ° 30 ' | 70 ° 30 ' |
| H | OFFSET | 45 | 45 | 45 | 45 | 45 |
| I | HEAD TUBE | 120 | 120 | 130 | 150 | 170 |
SIZE CHART

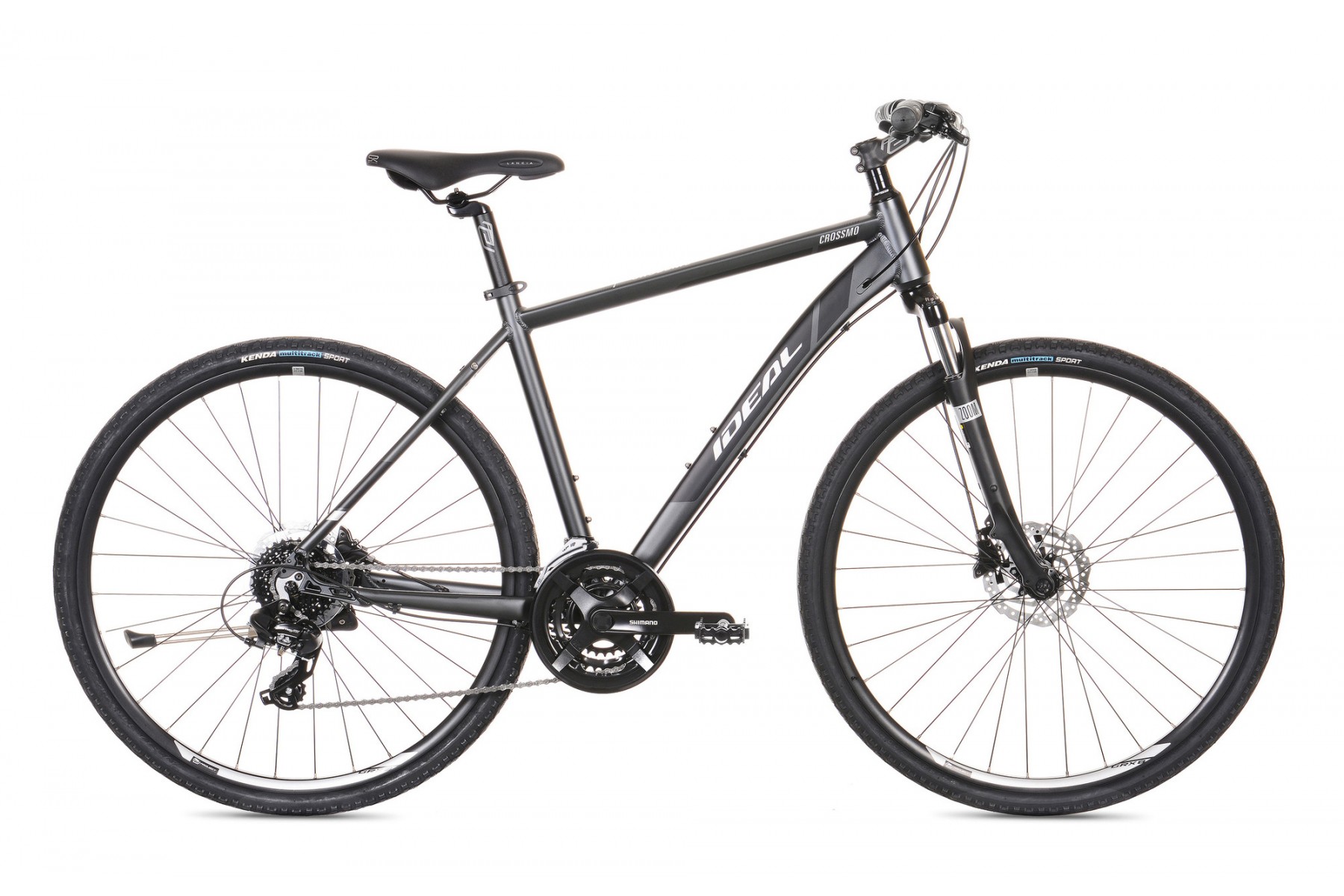

IDEAL CROSSMO 28 Adventure Bike
Data sheet
- Frame
- Cross / Trekking 28, AL6061-T4 / T6, hydroforming, internal gear cables
- Size
- 46/50/54/58 cm
- Fork
- ZOOM 141D AMS, alloy, 45mm, adjustable preload
- Front Derailleur
- Shimano FD-TY710-TS
- Rear Derailleur
- Shimano RD-TX800
- Shifter
- Shimano ST-EF505
- Bottom Bracket
- Shimano BB-UN101
- Crankset
- Shimano FC-TY301, 48-38-28T
- Cassette Sprocket
- Shimano CS-HG31, 11-32T
- Chain
- KMC Z8
- Front Hub
- Shimano HB-TX505
- Rear Hub
- Shimano FH-TX500-8
- Tires
- Kenda K935, 42-622 (700x40C)
- Brakes
- Shimano BR-MT200 / ST-EF505, hydraulic, 160/160 mm
- Handlebar
- id-Project riser bar aluminum, 660 mm
- Stem
- id-Project aluminum, 25.4 mm
- Seat Post
- id-Project aluminum, 30.9 mm
- Saddle
- Sell Royal RVS Lancia
- Rims
- Cross X-6, 622-21 x 20.5mm
- Kickstand
- Atran rear kickstand
Wheel: 28''
Speed: 24
